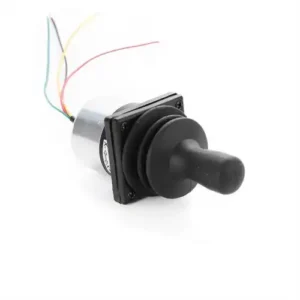

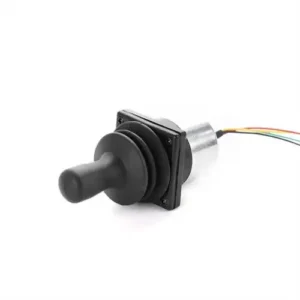

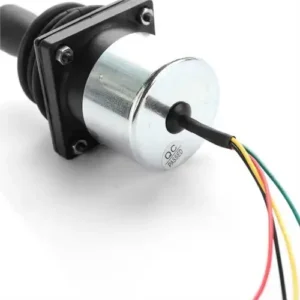

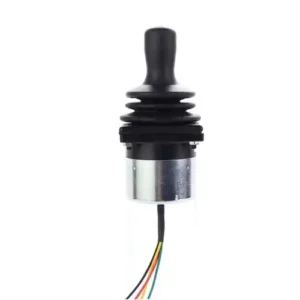

TJ6 Fingertip multi-axis operating handle
應用
This series of products are mainly used in video control equipment, electric wheelchairs and medical equipment.
技術資訊
電氣參數
| 電源電壓 | 5.0 ± 0.5Vdc |
| 電源電壓 | ＜ 18mA |
| Limit allowable voltage | 30Vdc |
| 反向極限容許電壓 | -15Vdc |
| 負載阻抗 | ＞ 10KΩ |
| 中值電壓 | 2.5 ± 0.2V |
| Output linear error | ＜ ± 5% |
機械參數
| Shake angle about | ± 20 ° |
| 操作模式 | 自動彈簧回位 |
| 啟動力 | 2.3N |
| 最大操作力 | 6N |
| Limiting force ＞ | 300N |
| 使用壽命 | > 3 million times |
| 重量 | 120g |
環境參數
| 工作溫度 | -30 ° C ~ + 70 ° C |
| 儲存溫度 | -40 ° C~+80°C |
| 保護等級 | IP65 (installed on the panel) |
產品配置
| H51 | Hall type, 0.5 ~ 2.5 ~ 4.5V voltage output |
| H52 | Hall type, 0 ~ 2.5 ~ 5V voltage output |
| RS232 | RS232 serial digital signal output |
| USB | USB interface digital signal output |
| 電氣連接 | ||
| Outgoing way | ||
| Wire order | Function | color |
| 一 | VCC | red |
| 2 | GND | black |
| 3 | X out | yellow |
| 4 | You t | green |
