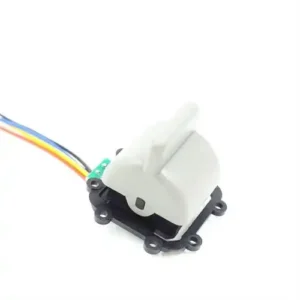

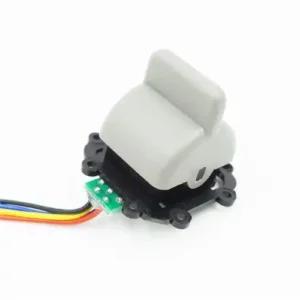

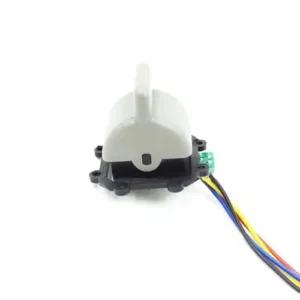

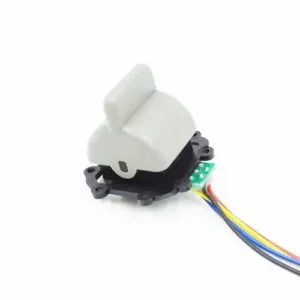

TJ3 單軸霍爾效應指輪搖桿
應用
Typical application on remote radiometric chest pack, off-highway vehicle and industrial panel control
技術資訊
Electrical data
Power Supply:5±O.5Vdc (standard voltage)
9~36Vdc (widevoltage)
Power supply current:<9mA
18mA (redundant hall)
Maximum allowance overload voltage 30Vdc
| Reverse polarity voltage(max) | -15Vdc |
| 負載阻抗 | >10KQ |
| Resistance tolerance | 2.5±0.2V |
| Output linearity tolerance | < ±0.3Vdc |
| Mechanical features | |
| Travel angle | About ±30° |
| Operating type | 春季回歸 |
| Breakout force | 1.3N |
| Operation force | 3N |
| Maximum allowable force | >30N |
| Expecting life | >2 million cycles |
| 重量 | 45g |
| <_ | J |
Environmental data
Operating Temperature Storage Temperature Protection level
-30°C~ +70°C
-40 J +85°C
IP65
(Only for electronic part)
尺寸
 |
 |
| Front view | Lateral view |
 |
 |
| Operating angle schematic |
產品安裝
 |
Panel opening |
電氣連接
| Wire definitions | ||
| Number function | Colour | |
| 1 | VCC | Red |
| 2 | GND | Black |
| 3 | Aout | Yellow |
| 4 | Bout | Green |
Output Schematic
