應用
This series of products are mainly used in industrial remote controls, control panels of various engineering vehicles or industrial machinery and equipment.
技術資訊
電氣參數
Power supply voltage 5.0±0.5Vdc (standard voltage)
Power supply voltage 9~36Vdc (wide voltage)
Power supply current <9mA
Maximum allowable voltage 30Vdc
反向極限允許電壓 -10Vdc
Load resistance >10KΩ
Median output voltage 2.5±0.1V
Output voltage linearity error <±2%
機械參數
Shaking angle about ±30°
操作模式：彈簧自動復位
Starting force 1.3N
Maximum operating force 3N
Limiting force >30N
Service life> 2 million times (Hall type)
Weight 45g
環境參數
Working temperature -30℃~+70℃
儲存溫度 -40℃~+85℃
Protection grade IP65 (only for the electronic part)
Product configuration

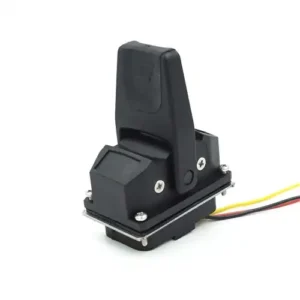

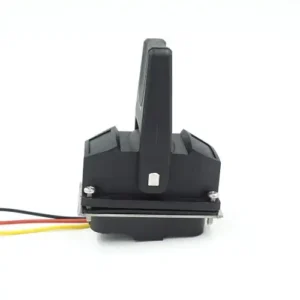

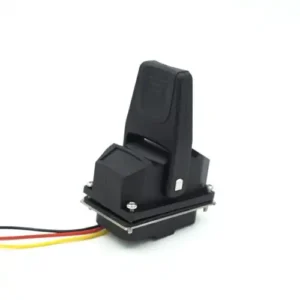

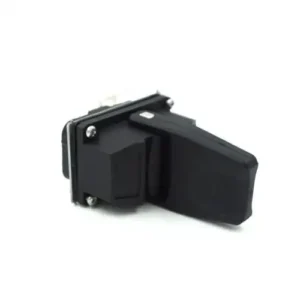

TJ130 series1-axis joystick
輸出信號
H51: Hall effect,0.5~2.5~4.5V voltage output
H52: Hall effect,0~2.5~5V voltage output
H53: Hall effect,1.25~2.5~3.75V voltage output
Operating Type
M: Start in the middle
S: Start in lateral position
L: Start position is in the middle position, single side with lock
DL: Start position is in the middle position, dual side with lock
Product installation
Electrical Connection
Direct out
線路顏色功能
Red input voltage -5V
Black 0V
Yellow output
尺寸
