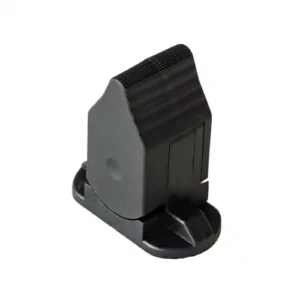

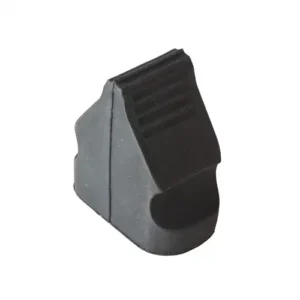

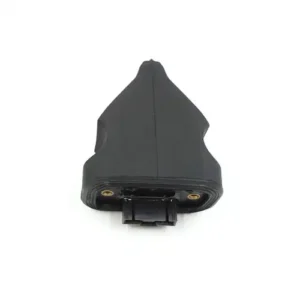

TJ120 series
Fingertip single axis operating handle
產品特色
Single-axis fingertip handle for front and back operation.
The spring automatically resets.
It is compact and easy to install.
The angle detection unit is a potentiometer or a non-contact Hall sensor.
Different output voltage ranges can be selected according to needs.
應用範圍
This series of products are mainly used in industrial remote controls, control panels of various engineering vehicles or industrial machinery and equipment.
技術資訊
電氣參數
電位器類型
| 電源電壓 | <32Vdc |
| 總電阻值 | 4KQ or 5KΩ |
| Resistance error | <20% |
| 電氣角度 | ± 28 ° |
| 中值死角 | ± 2.5 ° |
| Potentiometer maximum power consumption | 0.25W (25 ℃, no load) |
| 中值輸出電壓 | 48% ~ 52% (± 2%) |
| Direction switch Power supply voltage | <35Vdc |
| 最大電流 | 2mA |
機械參數
| Shake angle about | ± 30 ° |
| 操作模式 | 自動彈簧回位 |
| 啟動力 | 1.3N |
| 最大操作力 | 3N |
| 限制力 | > 50N |
| 使用壽命 | > 2 百萬次 (電位器型) |
| > 5 百萬次（霍爾型） | |
| 重量 | 45g |
環境參數
| 工作溫度 | -30 ℃ ~ + 70 ℃ |
| 儲存溫度 | -40 ℃ ~ + 85 ° ℃ |
| Protection class | IP50 (above the installation panel) |
產品選擇
TJ120 Series
輸出信號
[Potentiometer type (power supply voltage is less than 32Vdc)
| P041 | 4KQ potentiometer, 0% ~ 100% Vdc voltage output, front and back direction switch |
| P052 | 5KQ potentiometer, 10% ~ 90% Vdc voltage output, front and back direction switch |
| P053 | 5KQ potentiometer, 25% ~ 75% Vdc voltage output, front and back direction switch |
電氣裝置

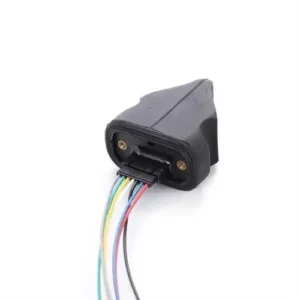

Wiring plug (MOLEX 50579407-1 seven-pin connector)
Pin Electrical position type Thread color
| A Potentiometer center tap red |
| B Supply voltage blue |
| C Potentiometer sliding output voltage black |
| D OV white |
| E Direction switch (Y-) Yellow |
| Direction switch (Y +) green |
| G direction open public close end gray |
