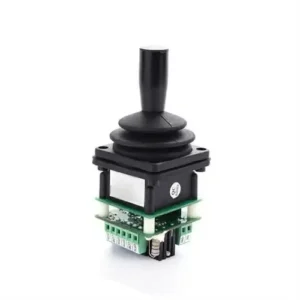

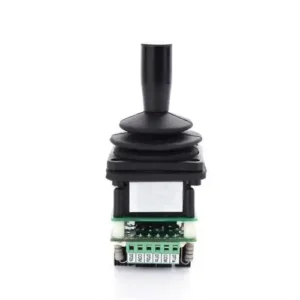

TJ11 series
Fingertip dauli-axis operating handle
應用範圍
This series of products are mainly used in engineering vehicles and industrial remote controls.
技術資訊
電氣參數
| 電源電流 | <36Vdc |
| 總電阻值 | 5KΩ |
| 電氣角度 | ± 30 ° |
| 中值電壓 | 48% ~ 52% (相對電源電壓) |
| 中值死角 | ± 2.5 ° |
| 電位器最大電壓 | 32 VDC |
| Power supply curren | t <36Vdc |
| 總電阻值 | 5KΩ |
| 電氣角度 | ± 30 ° |
| 中值電壓 | 48% ~ 52% (相對電源電壓) |
| 中值死角 | ± 2.5 ° |
| 電位器最大電壓 | 32Vdc |
| 電位器允許最大耗電量 | 0.25W (25 ℃) |
| Direction switch Load capacity | 2mA @ 30Vdc（電阻負載） |
| 起始角度 | ± 3 ° ~ ± 5 ° |
| 接觸電阻 | <200Ω |
機械參數
| 搖擺角度 | ± 32 ° |
| 操作模式 | Automatic spring reset, biaxial operation in any direction |
| 啟動力 | 3.8N |
| 最大操作力 | 12N |
| 限制力 | 300N (H upper end is greater than 160N) |
| 使用壽命 | > 2 million times |
| 重量 | 125g |
環境參數
| 工作溫度 | -30 ℃ ~ + 70 ℃ |
| 儲存溫度 | -40 ℃ ~ + 85 ℃ |
| Protection clas | s IP50 (above the installation panel) |
產品選擇
TJ11 Series
操作方法
| 1A | 前後向單軸操作 |
| 2AC | 雙軸的任何操作方向（帶導槽 |
Output Signal
[Potentiometer type (power supply voltage <36Vdc)]
| P051 | 5KQ potentiometer, 0 ~ 100% Vdc voltage output with front and rear direction switches |

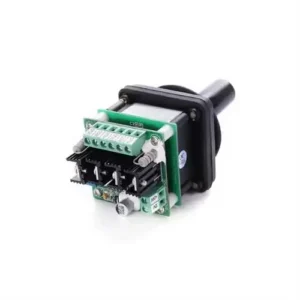

PWM with amplifier board
| PWM 224 | power voltage 24Vdc, 2 outputs |
| PWM 424 | power supply voltage 24Vdc, 4 outputs |
| PWM 212 | power voltage 12Vdc, 2 outputs |
| PWM 412 | power supply voltage 12Vdc, 4 outputs |
把手上端
| S | upper end of S-shaped handle, no button |
| L | upper end of L-shaped handle, no button |

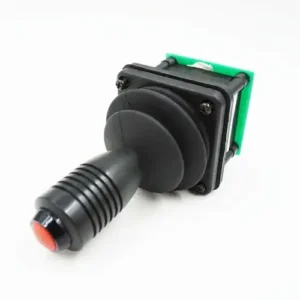

| H | upper end of H-shaped handle with button |
Terminal Potentiometer type
| 1 Switch common |
| 2 Front direction switch |
| 3 Rear direction switch |
| 4 Slider of potentiometer |
| 5 Potentiometer A |
| 6 potentiometer center |
| 7 Potentiometer B |
| 8 Button switch |
| 9 Button switch |
