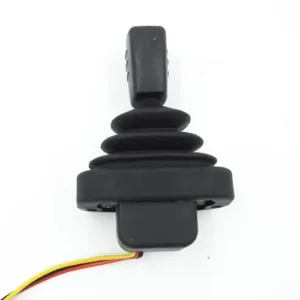

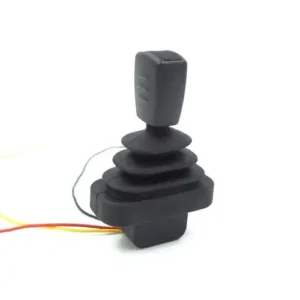

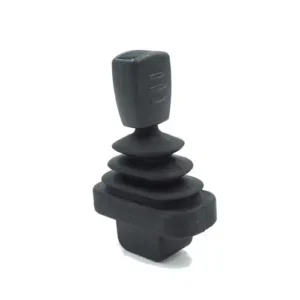

TJ100 單軸指針霍爾效應搖桿
產品特色
拇指操作
自動彈簧復位
霍爾非接觸檢測
應用範圍
本系列產品主要應用於各種操作把手及操作面板。
技術參數
| Fingertip spring return single shaft handle Contactless Hall technology, long life, High reliability.
Compact structure, suitable for limited space Internal multi-handle side-by-side operation requirements. |
|
| Mechanical parameters Shake angle: ± 20 ° Mode of operation: spring return Maximum allowable force: 150 ～ 200NService life: > 1 million times
Weight: 48 ± 5 grams Operating force (max): 5-8N |
Environmental parameters Working temperature: -30 ℃ ～ + 70 ℃
Storage temperature range: -40 ℃ ～ + 85 ℃ Protection level: IP68 |
| 電氣參數
Power supply voltage: 5 ± 0.5Vdc Maximum current: 22mA Maximum allowable overload voltage: 20Vdc Reverse maximum allowable voltage: -10Vdc Load resistance: 10 kΩ Median output voltage: 2.5V ± 0.1V Output linear error: <±3% |
|
產品選擇
系列輸出信號
TJ100
H51 單霍尔，0.5 ~ 2.5 ~ 4.5Vdc 電壓輸出
電氣裝置
行順序功能 行顏色
1 GND Black
2 5V Red
3 OUT Yellow
