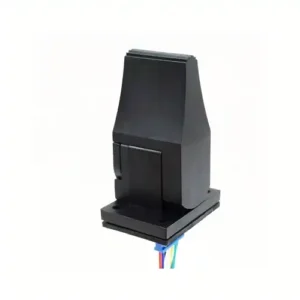

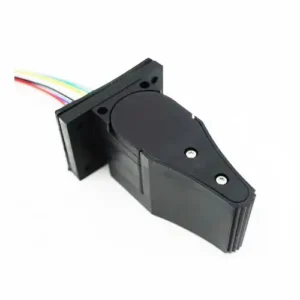

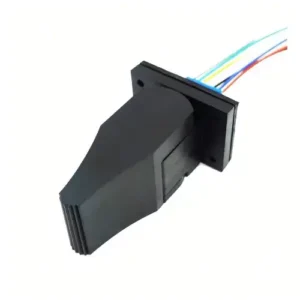

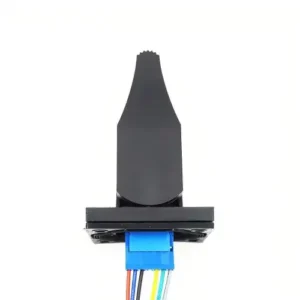

TJ1 series
Fingertip single axis operating handle
應用範圍
This series of products are mainly used in industrial remote controls, control panels of various engineering vehicles or industrial machinery and equipment.
技術參數 技術資訊
Electrical Specification
電位器類型
| 電源電壓 | <32Vdc |
| 總電阻值 | 4KQ or 5KQ |
| Resistance error | <20% |
| 電氣角度 | ± 28 ° |
| 中值死角 | ± 2.5 ° |
| Potentiometer maximum power consumption | 0.25W (25 ℃, no load) |
| 中值輸出電壓 | 48% ~ 52% (± 2%) |
| Direction switch Power supply voltage | <35Vdc |
| 最大電流 | 2mA |
| 起始角度 | ± 3 ° |
| 接觸電阻 | <500Q |
大廳類型
| 電源電壓 | 5.0 ± 0.5Vdc |
| 電源電流 | <9mA; 18mA (dual Hall) |
| Limit allowable voltage | 30Vdc |
| 反向極限容許電壓 | -15Vdc |
| 負載阻抗 | > 10KQ |
| 中值輸出電壓 | 2.5 ± 0.2V |
| Output voltage linear error | <± 5% |
機械參數
| Shake angle about | ± 30 ° |
| 操作模式 | 自動彈簧回位 |
| 啟動力 | 1.3N |
| 最大操作力 | 3N |
| 限制力 | > 50N |
| 使用壽命 | > 2 百萬次 (電位器型) |
| > 5 百萬次（霍爾型） | |
| 重量 | 45g |
環境參數
| 工作溫度 | -30 ℃ ~ + 70 ℃ |
| 儲存溫度 | -40 ℃ ~ + 85 ℃ |
| 保護等級 | IP66 (above the installation panel) |
產品選擇
TJ1 series
輸出信號
[Potentiometer type] (Power supply voltage is less than 32Vdc)
P041 4KQ potentiometer, 0% ~ 100% Vdc voltage output, front and back direction switch
P052 5KQ potentiometer, 10% ~ 90% Vdc voltage output, front and back direction switch
P053 5KQ potentiometer, 25% ~ 75% Vdc voltage output, front and back direction switch
Hall type (supply voltage 5Vdc)
H51 單霍尔，0.5 ~ 2.5 ~ 4.5Vdc 電壓輸出
H52 single Hall, 0 ~ 2.5 ~ 5.0Vdc voltage output
H53 single Hall, 1.25 ~ 2.5 ~ 3.75Vdc voltage output
2H51 redundant Hall, 0.5 ~ 2.5 ~ 4.5Vdc and 4.5 ~ 2.5 ~ 0.5Vdc voltage output
2H52 redundant Hall, 0 ~ 2.5 ~ 5Vdc and 5 ~ 2.5 ~ 0Vdc voltage output
2H53 redundant Hall, 1.25 ~ 2.5 ~ 3.75Vdc and 3.75 ~ 2.5 ~ 1.25Vdc voltage output
電氣裝置
Wiring plug (FCI DU BOX TM 7-way male connector 76382-307)
Pin Electrical position type Hall type Redundant Hall thread color
A Potentiometer neutral center tap empty A out red
B Supply voltage Supply voltage Supply voltage Blue
C Potentiometer sliding output voltage Bout Bout black
D OV OV OV white
E Direction switch (X +) empty empty yellow
F direction switch terminal (X-) empty empty green
G direction open public close end empty empty gray
