LT8 Series Multi Axis Joystick
| 電源電壓 | 5 ± 0.5Vdc |
| 電源電流 | <9mA (no upper end) |
| <18mA (with BWH upper end) | |
| 限制允許的過電壓 | 30Vdc |
| 反向極限容許電壓 | 15Vdc |
| 輸出電壓的線性誤差 | <± 0.2V |
| Analog power supply voltage | 5.0 ± 0.5Vdc |
| Analog voltage seesaw output voltage | 1.15 ~ 2.5 ~ 3.85V |
| Button switch | load capacity 1A @ 28Vdc |
| Mechanical life | more than 1 million times |
機械參數
| 搖擺角度 | ± 18 ° |
| 操作模式 | 自動彈簧回位 |
| 啟動力 | 9N |
| 最大操作力 | 18N |
| 限制力 | > 300N |
| 使用壽命 | > 5 million times |
| 重量 | 420g (no upper end) |
環境參數
| 工作溫度 | -30 ℃ ~ + 70 ℃ |
| 儲存溫度 | -40 ℃ ~ + 85 ° ℃ |
| Protection class | IP67 |
產品選擇
Series
LT8
操作方法
| 1A | single axis operation |
| 2AC | double axis arbitrary operation direction (with guide groove) |
輸出信號
Hall type (supply voltage 5Vdc)
| H51 | 0.5 ~ 2.5 ~ 4.5Vdc voltage output |
| H52 | 0V ~ 2.5 ~ 5Vdc voltage output |
| H53 | 1.25 ~ 2.5 ~ 3.75Vdc voltage output |
把手上端

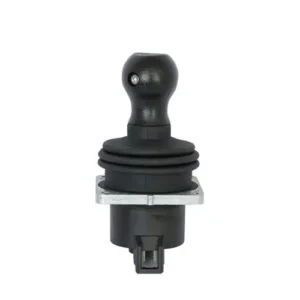

| BA | upper end of BA type handle, no button on top |
| HL | upper end of HL type handle, no button on top |

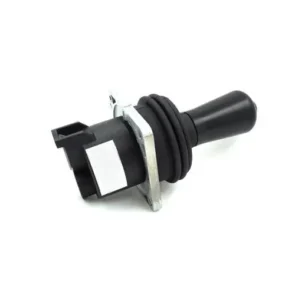

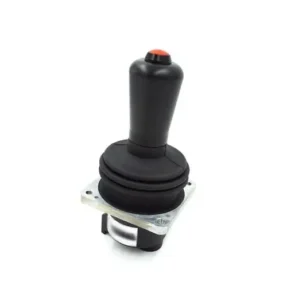

| HLS | upper end of HLS type handle with button on top |
| BWH | BWH type handle upper end, with Hall analog rocker on top |
Outgoing way
| D | Dechi connector |
| L | direct outlet |
電氣連接
DECH 6-pin connector
Pin function
| 1 OV |
| 2 5V |
| 3 X out |
| 4 Y out |
| 5 Rocker analog output / button |
| 6 Empty / button |
