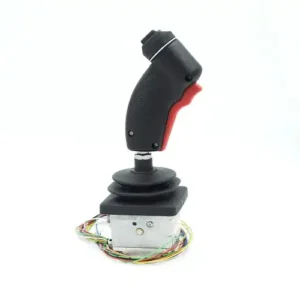

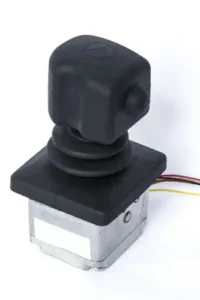

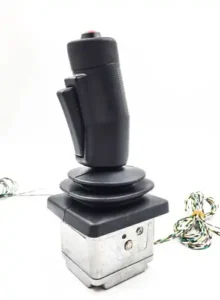

LT70 series
Grip Multi-axis Joystick
應用
This series of products are mainly used in cranes, loaders, forklifts, excavators, aerial work platforms, tractors, harvesters, etc.
GENERAL SPECIFICATION
Electrical Specifications
大廳類型
| 電源電壓 | 5 ± 0.5Vdc |
| Power supply current (rated power supply current) | <11mA (single axis) 22mA (dual axis) |
| 限制允許的過電壓 | 20Vdc |
| 反向極限容許電壓 | -10Vdc |
| 輸出電壓的線性誤差 | <± 0.2V |
Mechanical Specifications
| Deflection angle | ± 20 °in X and Y derections |
| 操作模式 | 春季回歸 |
| 啟動力 | 5N |
| 最大操作力 | 11N |
| 限制力 | > 300N |
| Expected lifecycles (X and Y axis) | > 2 百萬次 (電位器型) |
| > 5 百萬次（霍爾型） | |
| 重量 | 450g (no upper end) |
Environmental Specifications
| 工作溫度 | -30C ~ + 70 ℃ |
| 儲存溫度 | -40 ℃ ~ + 85 ℃ |
| 保護等級 | IP65 (above the installation panel) |
產品選擇
LT70 series
Operation
| 1A | Single-axis front-back operation |
| 2AP | Dual axis cross operation direction |
| 2AC | Any operation direction of two axies |
輸出信號
Hall type (supply voltage 5VDC)
| H51 | Single Hall，
0.5 ~ 2.5 ~ 4.5Vdc voltage output |
| H52 | Single Hall，
0 ~ 2.5 ~ 5Vdc voltage output |
| H53 | Single Hall，
1.25 ~ 2.5 ~ 3.75Vdc voltage output |
| H54 | Single Hall，
1.0 ~ 2.5 ~ 4.0Vdc voltage output |
| H55 | Single Hall，
1.15 ~ 2.5 ~ 3.85Vdc voltage output |
| 2H51 | redundant Hal，l
0.5 ~ 2.5 ~ 4.5Vdc voltage output |
| 2H52 | Redundant Hall，
0 ~ 2.5 ~ 5Vdc voltage output |
| 2H53 | Redundant Hall，
1.25 ~ 2.5 ~ 3.75Vdc voltage output |
| 2H54 | Redundant Hall，
1.0 ~ 2.5 ~ 4.0Vdc voltage output |
| 2H55 | Redundant Hall，
1.15 ~ 2.5 ~ 3.85Vdc voltage output |
| 2H56 | Redundant Hall，
1 ~ 2 ~ 4Vdc and 4 ~ 2 ~ 1Vdc voltage output |
把手上端
| KM | with safety switch,
rocker switch |
| KMNN | without safety switch and rocker button |
| KMDN | with safety switch,
without rocker button |
| KMNR | no safety switch,
rocker switch |
Outgoing way
| A | horn connector (A2547HA-14P 2.54) |
| XR9E Plug-in automotive connector (XR-9E connector) | |
| L | direct outlet |
尺寸
產品安裝
電氣裝置
大廳類型
| 線路顏色功能 |
| Gray Y-axis output |
| Green background with white circle X axis output |
| Blue Rocker switch common |
| Purple safety switch |
| Orange safety switch |
| Black top switch left |
| Red top switch right |
| White Vin(+ 5Vdc,9~36V) |
| Brown OV |
