LT30 series Grip type multi-axis operating handle
產品特色
Spring automatically resets, single-axis or dual-axis operation.
You can choose to operate in the cross direction or in any direction.
The angle detection device is a potentiometer or Hall sensor, which has a long service life.
Configurable high current micro switch (10A @ 30Vdc).
Various output formats are available.
Can be configured with a variety of models
應用範圍
This series of products are mainly used in aerial work trucks, rotary drilling rigs, aerial fire trucks, cranes, shield machines and other electrical and electro-hydraulic control systems.
技術資訊
電氣參數
電位器類型
| 電源電壓 | <36Vdc |
| 總電阻值 | 5KΩ, 10KΩ |
| Center dead zone angle | ± 3 ° |
| Maximum power | 0.2W |
大廳類型
| Power supply voltag | e5 ± 0.5Vdc |
| 限制允許的過電壓 | 20Vdc |
| 反向極限容許電壓 | -10Vdc |
| 輸出電壓的線性誤差 | <± 0.2V |
配備轉換電路
| 電源電壓 | 18 ~ 36Vdc (U 21 ~ U 24) |
| 耗電電流 | <20mA |
| 最大輸出電流 | 10mA (標準電壓輸出時) |
微型開關
| 負載能力 | 10A @ 30Vdc (resistive load) |
| 使用壽命 | > 30 million times or more (mechanical) |
| > 200,000 times (electrical) | |
| 絕緣電阻 | 100MΩ or more (500Vdc insulation resistance meter) |
| 起始角度 | ± 3 ° ~ ± 5 ° |
機械參數
| 搖擺角度 | ± 25 ° |
| 操作模式 | 自動彈簧回位 |
| 啟動力 | 5N |
| 最大操作力 | 30N |
| 限制力 | ＞300N |
| 使用壽命 | ＞2 million times (potentiometer type) |
| 5＞ million times (Hall type) | |
| 重量 | 460g (no upper end) |
環境參數
| 工作溫度 | -30 ℃ ~ + 70 ℃ |
| 儲存溫度 | -40 ℃ ~ + 85 ℃ |
| 保護等級 | IP65 (above the installation panel) |
產品選擇
LT30 series
操作方法
| 1A | Single-axis front-back operation |
| 2AP | Dual axis cross operation direction |
| 2AC | any operation direction of two axes |
微型開關
| MS00 | without micro switch |
| MS22 | with 10A front and back position micro switch |
| MS23 | with 10A neutral position normally closed and front and back position micro switch |
輸出信號
Potentiometer type | (supply voltage <36VDC)
| P051 | 5KΩ center tapped potentiometer |
| P101 | 10kΩ center tapped potentiometer |
Hall type (supply voltage 5VDC)
| H51 | 0.5 ~ 2.5 ~ 4.5Vdc voltage output |
| H52 | 0 ~ 2.5 ~ 5Vdc voltage output |
| H53 | 1.25V ~ 2.5V ~ 3.75Vdc voltage output |
配備轉換電路
| U21 | power supply voltage 18 ~ 36Vdc, -10V ~ 0V ~ + 10V voltage output |
| U22 | power supply voltage 18 ~ 36Vdc, + 10V ~ 0V ~ + 10V voltage output |
| U23 | power supply voltage 18 ~ 36Vdc, -5V ~ 0V ~ + 5V voltage output |
| U24 | power supply voltage 18 ~ 36Vdc, + 5V ~ 0V ~ + 5V voltage output |
| I21 | power supply voltage 9 ~ 36Vdc, two-wire system 4mA ~ 12mA ~ 20mA current output |
| I22 | power supply voltage 9 ~ 36Vdc, two-wire system 20mA ~ 4mA ~ 20mA current output |
| I41 | power supply voltage 9 ~ 36Vdc, four-wire 4mA ~ 12mA ~ 20mA current output |
| I42 | power supply voltage 9 ~ 36Vdc, four-wire 20mA ~ 4mA ~ 20mA current output |
| NA | no analog signal output |
把手上端
| BG | upper end of BG type handle, top palm operation |

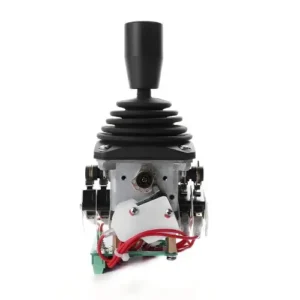

| HA | upper end of HA type handle, no button on top |

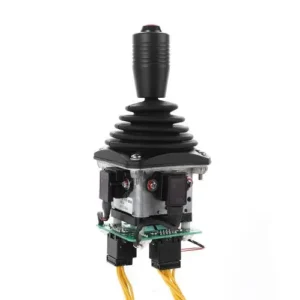

| HAS | the upper end of the HAS-type handle with buttons on the top |
| HD | upper end of HD handle, no button on top |

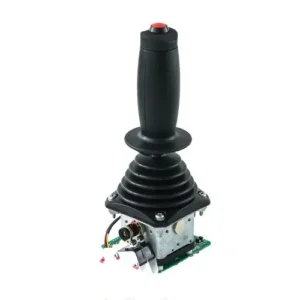

| HDS | upper end of HDS type handle, with button on top |
| HDR | upper end of HDR type handle, seesaw on top |

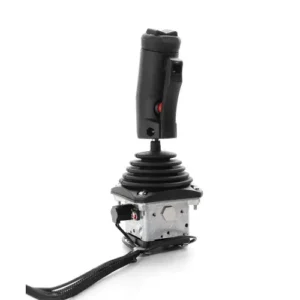

| KG DR | with safety switch and rocker button |
| KG DN | with safety switch, without rocker button |
Outgoing way
| C | terminal block |
| A | AMP 連接器 |
