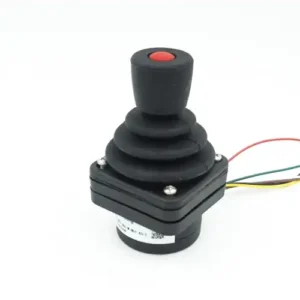

TJ9 3 Axis Hall Effect Joystick

TJ9 3 Axis Hall Effect Joystick - Image 3

TJ9 3 Axis Hall Effect Joystick - Image 4

Product Features

Based on ergonomic principles, compact in shape and comfortable in operation.
Fingertip operation, spring return.
Three-axis operation at any angle in any direction.
Handle top with two buttons at most.
RS232 or USB connector output is selectable

Category: [product_current_category_shortcode]

TJ9 seriesThree Axis Hall Effect Joystick

The TJ9 Series joystick is a contactless, multi-axis controller providing long life finger positioning control. A compact, low-profile joystick utilizing non-contact Hall effect technology, the TJ9 Series joystick is designed for low operating force, clean environment applications requiring enduring accuracy and precision. Mainly used on remote control, drone control, CCTV control etc.

Application range

This series of products are mainly used in video control equipment, electric wheelchairs and medical equipment.

Technical Information

Electrical parameters

Power supply voltage	5 ± 0.5Vdc (standard voltage)
	9 ~ 36Vdc (wide voltage)
Maximum power supply voltage	22mA (XY axis)
	33mA (Z axis)
Maximum overload voltage	20Vdc
Maximum reverse polarity voltage	-10Vdc
Load resistance	10KΩ
Median output voltage	2.5 ± 0.1Vdc
Linear error of output voltage	<± 0.2V

Mechanical parameters

Rocking angle	± 28 ° (XY axis); ± 42 (Z axis)
Mode of operation	Automatic spring return
Starting force	3N
Maximum operating force	8N
Limiting force	> 300N
Service life	> 5 million times (XY axis)
	> 5 million times (Z axis)
Weight	143.5g

Environmental parameters

Working temperature	-30 ℃ ~ + 70 ℃
Storage temperature	-40 ℃ ~ + 85 ℃
Protection grade	IP65 (above the installation panel)

Product model

Product Configuration

TJ9 Series

Input voltage

S	5Vdc (standard voltage)
W	9 ~ 36Vdc (wide voltage)

Limit plate selection

1AX	slotted (X axis)
1AY	slotted (Y axis)
2AP	plus
2AC	round limit method
2AQ	square limit method
2AG	round limit + guide groove

Output signal

H51	Hall type, 0.5 ~ 2.5 ~ 4.5V voltage output
H52	Hall type, 0 ~ 2.5 ~ 5V voltage output
RS232	RS232 serial digital signal output
USB	USB interface digital signal output

Handle selection

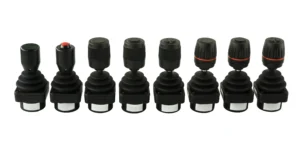

Z0	Z series handle, including Z axis, no button
Z1	Z series handle, including Z axis, single button
Z2	Z series handle, including Z axis, double button
ZN0	Z series handle, no Z axis, no button
ZN1	Z series handle, without Z axis, single button
ZN2	Z series handle, without Z axis, double button
L0	L series handle, no Z axis, no button
L1	L series handle, without Z axis, single button
L2	L series handle, without Z axis, double button
L3	L3 series handle, no Z axis, no button
H0	H series handle, with Z axis, without buttons
H1	H series handle, including Z axis, single button
H2	H series handle, including Z axis, double button
HN0	H series handle, no Z axis, no button
HN1	H series handle, without Z axis, single button
HN2	H series handle, without Z axis, double button

※ Remarks: Three-axis products are currently available with Z series handles and H series handles;
