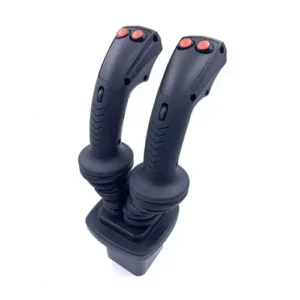

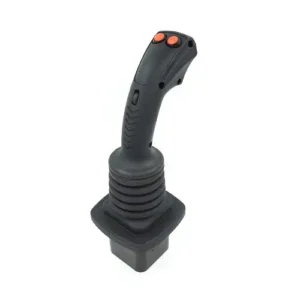

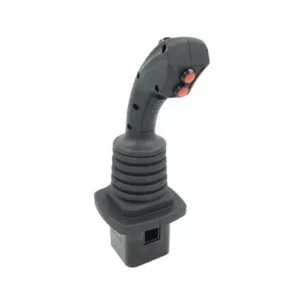

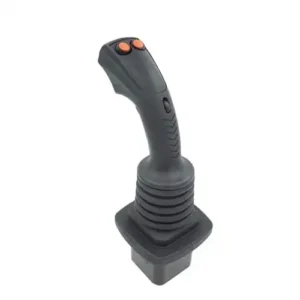

LT80 series
Grip type multi-axis operating handle
Application range
This series of products are mainly used in cranes, loaders, forklifts, excavators, aerial work platforms, tractors, harvesters, etc.
Technical parameters Technical ln formation
Electrical parameters
Hall type
| Power supply voltage | 5 ± 0.5Vdc |
| Power supply current (rated power supply current) | <11mA (single axis) 22mA (dual axis) |
| Limit allowable overvoltage | 20Vdc |
| Reverse limit allowable voltage | -10Vdc |
| Linear error of output voltage | <± 0.2V |
Mechanical parameters
| Rocking angle | ± 20 ° |
| Mode of operation | Automatic spring return |
| Starting force | 20N |
| Maximum operating force | 11N |
| Limiting force | > 300N |
| Service life | > 2 million times |
| Weight | about 660g |
Environmental parameters
| Working temperature | -30C ~ + 70 ℃ |
| Storage temperature | -40 ℃ ~ + 85 ℃ |
| Protection grade | IP65 (above the installation panel) |
Product selection
LT80 Series
Operation method
| 1A | Single-axis front-back operation |
| 2AC | any operation direction of two axes |
Input voltage
| S | 5Vdc (standard voltage |
| W | 9 ~ 36Vdc (wide voltage |
Output signal
Hall type (supply voltage 5VDC)
| H51 | Single Hall, 0.5 ~ 2.5 ~ 4.5Vdc voltage output |
| H52 | Single Hall, 0 ~ 2.5 ~ 5Vdc voltage output |
| H53 | Single Hall, 1.25 ~ 2.5 ~ 3.75Vdc voltage output |
| H54 | Single Hall, 1.0 ~ 2.5 ~ 4.0Vdc voltage output |
Upper end of handle
SC (SC series handle, no safety switch, panel with 1 rocker)
※ Optional SS series, HB series, KM series handle
Outgoing way
L (direct outlet)
※ The outlet form of other connectors can be customized
Electrical Installations
Straight out
| Line order / color | function |
| No. 1 | VCC |
| No. 2 | GND |
| No. 3 | X axis output |
| No. 4 | Y-axis output |
| Brown | seesaw and safety switch common |
| Yellow | left seesaw |
| White | right rocker |
Testing
In order to meet customers’ needs for waterproof and dustproof, we conduct waterproof and dustproof tests on the joysticks.
Waterproof testing
Dustproof testing
