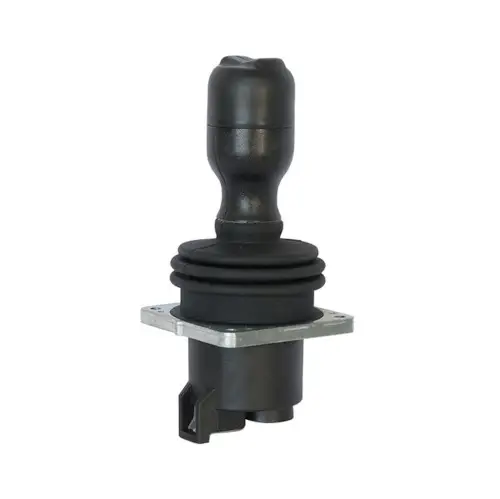

LT8 Series Multi Axis Joystick

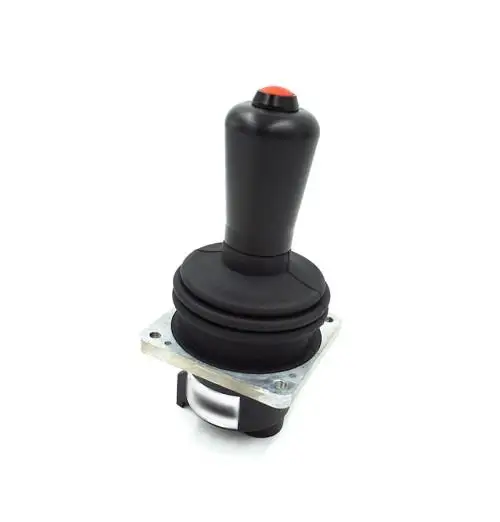

LT8 Series Multi Axis Joystick - Image 3

LT8 Series Multi Axis Joystick - Image 4

Product Features

•Hall-effect angle detection, long life.

•Spring return.

•Various output voltage range optional.

•Various handle optional.

Category: [product_current_category_shortcode]

LT8 Series Multi Axis Joystick

Power supply voltage	5 ± 0.5Vdc
Power supply current	<9mA (no upper end)
	<18mA (with BWH upper end)
Limit allowable overvoltage	30Vdc
Reverse limit allowable voltage	15Vdc
Linear error of output voltage	<± 0.2V
Analog power supply voltage	5.0 ± 0.5Vdc
Analog voltage seesaw output voltage	1.15 ~ 2.5 ~ 3.85V
Button switch	load capacity 1A @ 28Vdc
Mechanical life	more than 1 million times

Mechanical parameters

Rocking angle	± 18 °
Mode of operation	Automatic spring return
Starting force	9N
Maximum operating force	18N
Limiting force	> 300N
Service life	> 5 million times
Weight	420g (no upper end)

Environmental parameters

Working temperature	-30 ℃ ~ + 70 ℃
Storage temperature	-40 ℃ ~ + 85 ° ℃
Protection class	IP67

Product selection

Series

LT8

Operation method

1A	single axis operation
2AC	double axis arbitrary operation direction (with guide groove)

Output signal

Hall type (supply voltage 5Vdc)

H51	0.5 ~ 2.5 ~ 4.5Vdc voltage output
H52	0V ~ 2.5 ~ 5Vdc voltage output
H53	1.25 ~ 2.5 ~ 3.75Vdc voltage output

Upper end of handle

BA	upper end of BA type handle, no button on top
HL	upper end of HL type handle, no button on top
HLS	upper end of HLS type handle with button on top
BWH	BWH type handle upper end, with Hall analog rocker on top

Outgoing way

D	Dechi connector
L	direct outlet

Electrical Connections

DECH 6-pin connector

Pin function

1 OV

2 5V

3 X out

4 Y out

5 Rocker analog output / button

6 Empty / button
