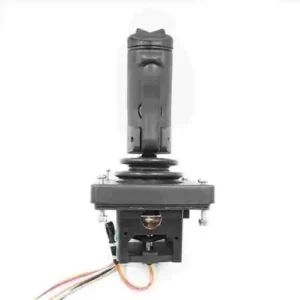

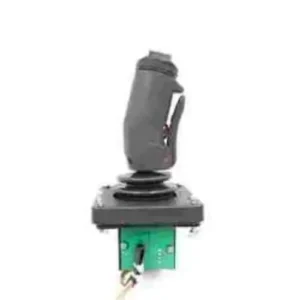

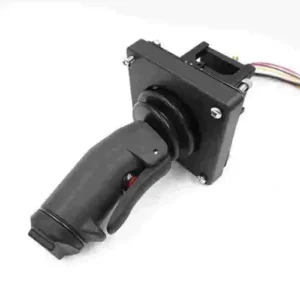

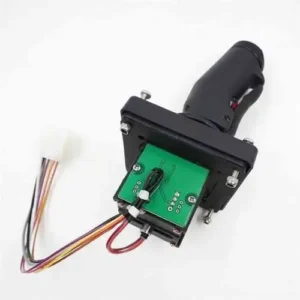

LT76 series
Grip-type multi-axis operating handle
Application
This series of products are mainly used in aerial work platforms.
Technical Information
Electrical parameters
Hall type
Power supply voltage 5±0.5Vdc
Power supply current (rated power supply current) <11mA (single axis), 22mA (double axis)
Limit allowable overvoltage 20Vdc
Reverse limit allowable voltage -10Vdc
Output voltage linearity error <±0.1V
Mechanical parameters
Swing angle ±20°
Operation mode: spring automatic reset
Starting force 5N
Maximum operating force 11N
Limiting force >300N
Service life> 2 million times
Weight 450g (without upper end)
Environmental parameters
Working temperature -30C~+70℃
Storage temperature -40℃~+85℃
Protection grade IP65 (above installation panel)
Product Configuration
LT76 series
Operation method
1A (Single-axis front and rear operation)
2AP (two-axis cross operation direction)
2AC (two-axis arbitrary operation direction)
output signal
Hall type (power supply voltage 5VDC)
H51 (Single Hall, 0.5~2.5~4.5Vdc voltage output)
H52 (Single Hall, 0~2.5~5Vdc voltage output)
H53 (Single Hall, 1.25~2.5~3.75Vdc voltage output)
H54 (Single Hall, 1.0~2.5~4.0Vdc voltage output)
H55 (Single Hall, 1.15~2.5~3.85Vdc voltage output)
Upper end of handle
KSDR (with safety switch, rocker button)
※Optional SS series, HB series, KM series handle
Way out
L Direct outlet
A connector outlet
※Other connector outlet forms can be customized
Electrical installation
Electrical Connections
Direct outlet (single shaft, with rocker and safety switch on the upper end)
Thread color function
White VCC
Black GND
Gray electrical output in front and rear directions
Yellow left rocker
Purple right rocker
Brown rocker and safety switch common
Red safety switch
